Long Lasting Drone Battery Pack 14.8V 14000mAh 20C High Voltage Multicopter Batteries
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:40:39
| Product Name: | Rechargeable UAV Battery | Discharge C-rate: | 20C Continous, 40C Peak |
|---|---|---|---|
| Battery Pack Weight: | 1153g | Application: | FPV Quadcopter Airplane Multicopter Drone UAV |
| Delivery Date: | 30 Days Lead Time | Battery Pack Resistance: | Very Small 6 MΩ |

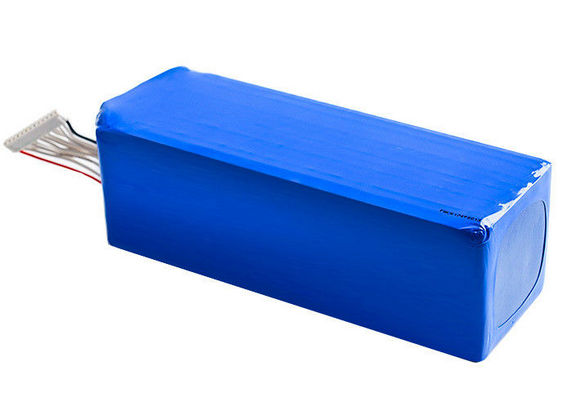

20C High Voltage 14Ah 14.8V Lipo Battery Multicopter Drone Battery pack
Battery pack Spec:
| Product Name | 4S Drone battery pack 14.8V 14000mAh 20C | |
| Battery Type | Lithium Polymer battery cell | |
| Power Wh: | 207.20Wh | |
| Accembly Composed Type | 4S/ 4 cells | |
| Nominal Capacity | 14000 mAh | @0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.08 V | |
| Cutoff Voltage for cell | 3.0 V | |
| Standard charge Current | 14000 mA | @1C charge |
| Max. charge current | 28000 mA | @2C charge |
| Continous Discharge Current | 280000 mA | @20C discharge |
| Max. Discharge Current | 560000 mA | @40C discharge ≤ 1s |
| Resistance(pack) | 6 mΩ | 1kHz AC Method |
| Extra Run Time: | Over 300 times | |
| Weight (Approx.) | 1153 g | |
| Dimensions(T.W.L.) | 37*71*230 (mm) | TxWxL |
| Charging Plug | JST-XH | selectable |
| Discharging Plug | EC 5 | selectable |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Warranty | 1 year guarrantee | |
We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 50000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.
• Low self discharge
• No memory effect
• Qick in charge and discharge, Lipo battery provides up to 3C charge, 65C discharge
• Lighter in weight, Lipo battery has high energy density (max. 200Wh/kg)
• Outstanding performance in high temperature
OEM Service:
-Selected color of shrinkable tube.
-Selected Discharge plug and Balance connector
-High quality OEM label
1. More competitive price! As a manufacturer, we have our own factory, so the price will be much more competitive!
2. Great quality! All the cells we use are A grade cells, 100% quality check and full one year warranty!
3. Fast delivery! Samples 15 days and bulk order 30 days!
4. Great shipping service! We have cooperated with DHL, UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5. Best sale-service! From the beginning to the end, any quality problem with our products, new free ones will be shipped!
