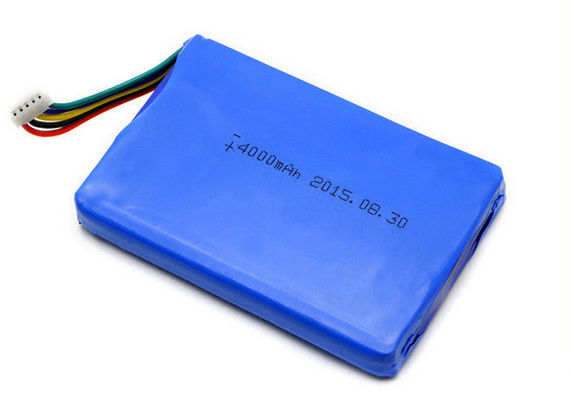

Rechargeable 14.8 V Lipo Battery 4000mAh , 755585 4 Cell Lithium Polymer Battery
- 类型Li-polymer Battery Pack
- 时间2022/3/17 15:47:11
| Product Name: | Rechargeable Lipo Battery | Battery Model: | 755585 3.7V 4000mAh |
|---|---|---|---|
| Battery Connector: | JST Molex Or Any Other Type | PCB: | Multi Protection |
| Warranty: | 12 Months | Application: | Portable Power And Led Light And So On |
Rechargeable 4S1P 4000mAh 14.8V Lipo Battery Pack 755585 4 Cells
Lipo battery Specification:
| Product Name | 4000mAh 14.8V lipo battery Pack | |
| Battery Type | Rechargeable Lithium Ion Polymer Battery | |
| Power Wh: | 59.2 Wh | |
| Assembly Composed Type | 4 single cell(4S1P) | |
| Nominal Capacity | 4000 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 12.0 V | |
| Standard discharge Current | 800 mA | @ 0.2C charge |
| Max. discharge current | 4000 mA | @ 1 C charge |
| Standard charge Current | 800 mA | @ 0.2C discharge |
| Max. charge Current | 4000 mA | @ 1C discharge |
| Resistance | ＜26 mΩ | |
| Weight (Approx.) | 330 g | |
| Cycle Life | Over 500 times | |
| Dimensions(T.W.L.) | 30*56*90 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |
Guarantee:
-Long guarantee time: 12 months from shipping date
-Defective lipo batteries caused by production can be replacement, and the new one will be sent with second shipment.
More information about battery
* Dual IC chips, that can anti-short circuit, anti-overcharge, anti-over current, anti-overload
* Injection Technology to make li-ion battery more stable
* Li polymer battery with short-circuit production function, safe and reliable
* Up to 500 cycles life, low self-discharge, no memory effect
* Li polymer battery with factory mastered technology
* Lithium polymer battery CE/RoHS Directive-compliant/SGS/UL/MSDS/UN38.3/IEC61233 standard
Battery application:
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone
Portable office devices: Notebook, PDA, portable electrograph, portable printer
Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4 players
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine
Illuminate devices: miner lamp, searchlight
