Portable 4 Cell 2000mah Lipo Battery 14.8 V 435085 For LED Light Battery
- 类型Li-polymer Battery Pack
- 时间2022/3/17 15:45:54
| Type: | Li-polymer Battery Pack | Configuration: | 4S1P Or Other Types |
|---|---|---|---|
| PCM: | Seiko IC Is Available | NTC: | 10 KOhm Or 100 KOhm (available) |
| Weight: | 168g | Application: | LED Light Medical Device And Massager Products Etc |

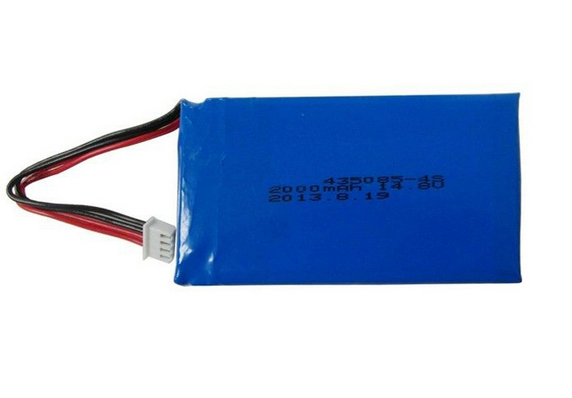

435085 4S1P 14.8V lipo battery pack 2000mAh LED light battery
Specification:
| Battery Type | Lithium ion Polymer battery | |
| Product Name | 435085 2000mAh 14.8V li-polymer pack | |
| Power Watts | 29.6Wh | |
| Assembly Composed Type | 4S1P( 4 single cells) | |
| Nominal Capacity | 2000 mAh | @0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Discharge end Voltage | 12.0 V | |
| Charge Voltage | 16.8±0.12 V | |
| Standard Discharge Current | 400 mA | @0.2C charge |
| Max. Discharge current | 2000 mA | @1C charge |
| Standard Charge Current | 400 mA | @0.2C discharge |
| Max. Charge Current | 2000 mA | @1C discharge |
| Weight (Approx.) | 168 g | |
| Cycle Life: | 500 times | |
| Dimensions(T.W.L.) | 17.2*50*87 (mm) | battery pack size |
| Resistance | ＜60 mΩ | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
Battery Features:
1. Accept OEM/ODM.
2. 12 months warranty from ship date.
3. Free samples are available.
4. With short-circuit protection function, most safe and reliable.
5. Good consistency, low self discharge.
6. Light weight and small,capacity and size could be customized
7.Never explosion,stable performance,environment friendly
8. Widely application for electronics and industry products.
About guarantee:
1. 12 months manufacturer's limited warranty for defective items (excluding items damaged or misused).
2. Defective items must be reported and returned within the warranty period,You must tell us what the defect is and give us your order number. We do not repair or replace items with an expired warranty.
Main application:
Lithium polymer battery(Lipo battery) widely used for Medical devices battery, LED light, Massage Product, Miner lamp,blue tooth device, E-bike, E-scooter, EV, UPS, power driven tools & toy, camcorder, digital camera,GPS, Portable DVD, PAD, notebook, Wireless transmitter, Wireless receiver etc
