Rechargeable 18650 Li Ion Battery Pack 3.7V 2600mAh With PCM
- 类型Lithium Ion Battery Pack
- 时间2017/6/8 21:52:20
| Product Name: | Li-ion Battery Pack | Capacity: | 2600mAh Or Cusomized |
|---|---|---|---|
| PCB Function: | Over Discharge Charge And Over Circuit Protection | Sample: | Stock Available |
| Wire Connector: | JST Molex Or Customized | Warranty: | 1 Year |

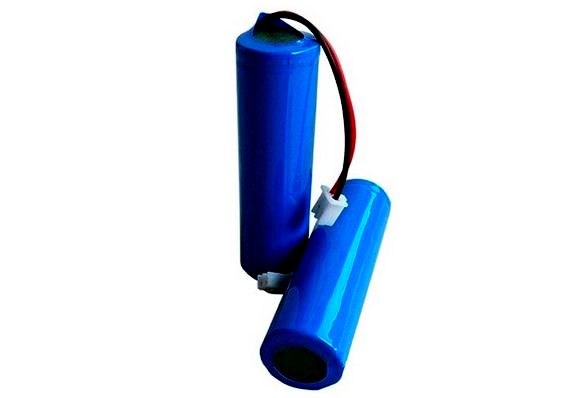

18650 2600mAh Lithium Ion Battery Pack 1S1P 3.7V li-ion battery
Battery specification:
| No. | Items | Specifications | Remark | |
| 1 | Nominal Capacity | 2600mAh | 0.2C Standard discharge | |
| 3 | Nominal Voltage | 3.7V | ||
| 4 | Discharge end voltage | 3.0V | ||
| 5 | Charge Voltage | 4.2V±0.03V | By standard charge method | |
| 6 | Standard charging method | 0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to≤0.01C | ||
| 7 | Charge current | 0.2C | 520mA | Standard charge, charge time about 6h(Ref) |
| 0.5C | 1300mA | Rapid Charge, charge time about: 3h(Ref) | ||
| 8 | Standard discharging method | 0.2C constant current discharge to 3.0V | ||
| 9 | Cell Internal Impedance | ≤50mΩ | Internal resistance measured at AC 1KHZafter 50% charge | |
| 10 | Maximum charge current | 1C | 2600mA | continuous charge |
| 11 | Maximum discharge current | 2C | 5200mA | continuous discharge |
| 12 | Operation Temperature and relative humidity Range | Discharge | -20~60℃ 60±25%R.H. | Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
| Charge | 0~45℃ 60±25%R.H. | |||
| 13 | Storage temperature for a long time |
‘-10~45℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery with protect circuit when storage for three months. | |
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Li-ion battery Features:
1. OEM orders are available
2. With PCB multi-protection, most safe and reliable.
3. High transfer efficiency low resistance and energy saving.
4. Existing stock for short delivery time.
5. High Capacity and Stable Discharge Voltage
6. Outstanding Discharge properties and Storage Capacity
Why us?
1. More competitive price! As a manufacturer, we have our own factory, so the price will be much more competitive!
2. Great quality! All the cells we use are A grade cells, 100% quality check and full one year warranty!
3. Fast delivery! 500pcs need only 7 days, and usually 3-5days!
4. Great shipping service! We have cooperated with DHL, UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5. Best sale-service! From the beginning to the end, any quality problem with our products, new free ones will be shipped!
