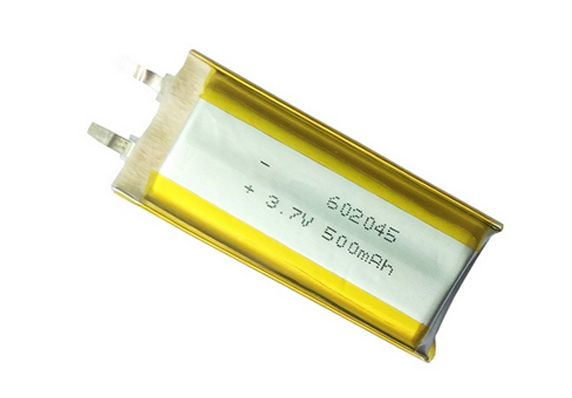

602045 Rechargeable Lithium Polymer Battery 3.7 V 500mah Small Lipo Cell
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:59:09
| Type: | Lithium Polymer Battery | Size: | 60x20x45mm |
|---|---|---|---|
| Warranty: | 1 Year | Application: | GPS, Bluetooth, Digital Devices,medical Device |
| Cycle Life: | 500 Times | Condition: | 100% New A Quality |
602045 Rechargeable Lithium Polymer Battery 3.7 V 500mah Small Lipo Cell
Lipo battery Specification:
| Product Name | 602045 500mAh 3.7V lipo battery | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 1.85Wh | |
| Accembly Composed Type | 1S/ 1 cell | |
| Nominal Capacity | 500 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 100 mA | @0.2C charge |
| Max. charge current | 500 mA | @1C charge |
| Standard Discharge Current | 100 mA | @0.2C discharge |
| Max. Discharge Current | 500 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 10 g | |
| Dimensions(T.W.L.) | 6*20*45 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~25℃ | More than one month | |
Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Certifications: CE, UN38.3, RoHS, MSDS
5. Long life cycle, No memory, environment friendly
Advantages:
1, High energy density,500 times long cycle life
2, High working voltage for single battery cells
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit over charge and discharge protections
9, Good consistency, low self discharge
Main application:
Lithium polymer battery(Lipo battery) widely used for GPS, Portable DVD, PDA, Cellular phone , mobile phone, notebook, earphone, bluetooth device,Medical devices battery, MP3 ,MP4 player,Wireless transmitter, Wireless receiver,airsoft gun, powerdriven tools & toy, camcorder, digital camera, head set stereo, handy terminal, mini disc player, E-cigarette, E-bike, E-scooter, EV, UPS etc.
