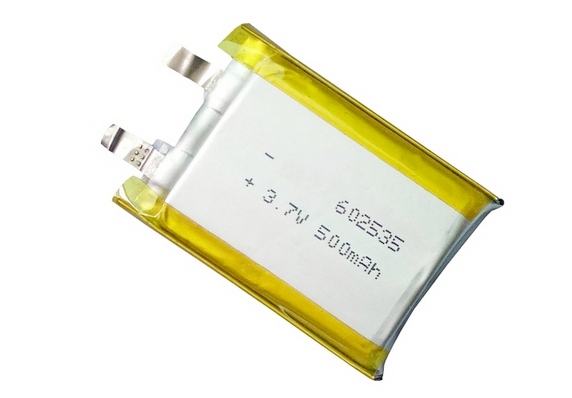

Rechargeable Lipo 500mAh 3.7V 602535 Lithium Polymer Li ion Battery Cell
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:58:36
| Type: | Li-polymer Battery | Wire/connector: | Customized |
|---|---|---|---|
| OEM/ODM: | Available | Cycle Life: | 500 Times |
| Protection: | Short Circuit/over Charge/over Discharge Protection | Application: | GPS, Bluetooth, Digital Devices,medical Device |
Rechargeable Lipo 500mAh 3.7V 602535 Lithium Polymer Li ion Battery Cell
Lipo battery Specification:
| Product Name | 602535 500mAh 3.7V li polymer battery | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 1.85Wh | |
| Accembly Composed Type | 1S/ 1 cell | |
| Nominal Capacity | 500 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 100 mA | @0.2C charge |
| Max. charge current | 500 mA | @1C charge |
| Standard Discharge Current | 100 mA | @0.2C discharge |
| Max. Discharge Current | 500 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 10 g | |
| Dimensions(T.W.L.) | 6.0*25*35 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~25℃ | More than one month | |
Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Long life cycle, No memory, environment friendly
Advantages:
1) High density of energy
2) Low self-discharge, Low internal resistance
3) Long cycle life, chargeable up to 500 times
4) Doesn’t contain Mercury, No fire, No explosion, No leakage
5) Very good and quick charge, capability can be charged to 90% within 10 min.
6) Thickness can be adjusted while width and height keep the same.
Major application:
1)MP3/MP4 player, Bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
