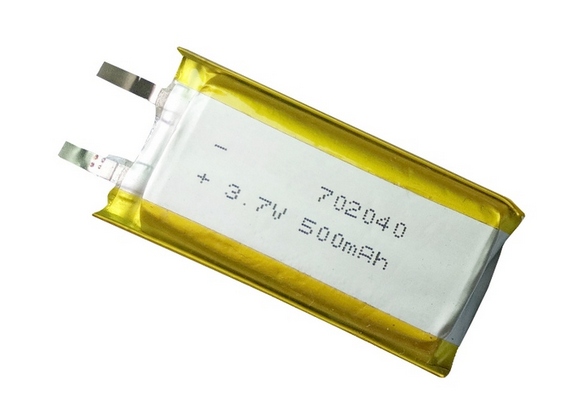

Good Quality 702040 3.7V 500mAh Lipo Single Cell Rechargeable Battery
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:57:43
| Type: | Li-polymer Battery | Capacity: | 500mAh |
|---|---|---|---|
| Application: | GPS, Bluetooth, Digital Devices,medical Device | Cycle Life: | 500 Times |
| Condition: | 100% New A Quality | Protection: | Short Circuit/over Charge/over Discharge Protection |
Good Quality 702040 3.7V 500mAh Lipo Single Cell Rechargeable Battery
Lipo battery Specification:
| Product Name | 702040 500mAh 3.7V li polymer battery | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 1.85Wh | |
| Accembly Composed Type | 1S/ 1 cell | |
| Nominal Capacity | 500 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 250 mA | @0.5C charge |
| Max. charge current | 500 mA | @1C charge |
| Standard Discharge Current | 250 mA | @0.5C discharge |
| Max. Discharge Current | 500 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 10 g | |
| Dimensions(T.W.L.) | 6.0*34*50 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~25℃ | More than one month | |
Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Certifications: CE, UN38.3, RoHS, MSDS
Advantages:
1. High working voltage (3.7V);
2. High energy density;
3. Long cycle life (more than 500 cycles);
4. High safety;
5. Agile shape & dimension;
6. No memory effect;
7. Low self discharge;
8. Environmental friendly;
Main application:
Lithium polymer battery(Lipo battery) widely used for
1) Portable electronic devices, Bluetooth headset
2) Digital camera, Digital camcorder, MP3 player, MP4 player
3) Cellular phone, Digital phone, mobile phone
4) PDA, DMB,DVD, Portable DVD, MID, Mining lamp, Flashlight, GPS
5) Notebook computer, Portable computer, Lap-top computer, FRS, E-book
