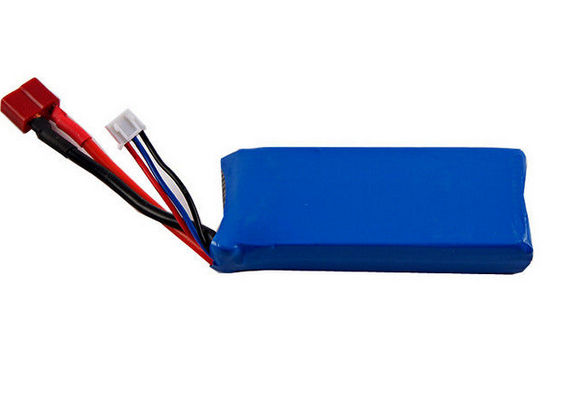

Best 30C Lithium Ion Polymer RC Helicopter Battery 2200mAh 7.4 V 2S1P Assembly
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:46:36
| Product Name: | RC Helicopter Battery | Discharge C-rate: | 30C Continous 50C Peak |
|---|---|---|---|
| Battery Cell: | 823496 3.7V 2200mAh | Battery Capactiy: | Can Be Customized |
| Configuration: | 2S1P 7.4V | Battery Size: | Customized As Your Requirement |
25C Lithium ion Polymer 2200mAh 7.4V RC Helicopter Battery Pack
Battery Spec:
| Product Name | 30C Lipo Helicopter battery pack 7.4V 2200mAh | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 16.28Wh | |
| Accembly Composed Type | 2S / 2 cells | |
| Nominal Capacity | 2200 mAh | @0.2C discharge |
| Nominal Voltage | 7.4 V | |
| Charge Voltage | 8.4±0.04 V | |
| Cutoff Voltage for cell | 3.0 V | |
| Standard charge Current | 2200 mA | @1C charge |
| Max. charge current | 6600 mA | @3C charge |
| Continous Discharge Current | 66000 mA | @30C discharge |
| Max. Discharge Current | 110000 mA | @50C discharge ≤ 1s |
| Resistance(pack) | 5 mΩ | 1kHz AC Method |
| Extra Run Time: | Over 300 times | |
| Weight (Approx.) | 115 g | |
| Dimensions(T.W.L.) | 17*35*100 (mm) | TxWxL |
| Charging Plug | JST | selectable |
| Discharging Plug | T-plug | selectable |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Warranty | 12 months | |
We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 22000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.
1, Shrink wrap with thin PVC.
2, All kinds of lipo battery packs are available.
3, Custom lipo battery packs are welcome.
4, With extremely low internal resistance, superior safety characteristics.
5, Light weight and higher energy density than any rechargeable battery.
6. It helps protect battery chemistry integrity and prolongs battery life.
7, Supply which requires compact size and lighter weight.
8, Long storage time, high discharge rate, superior over-discharge and overcharge endurance capability and long cycle life.
