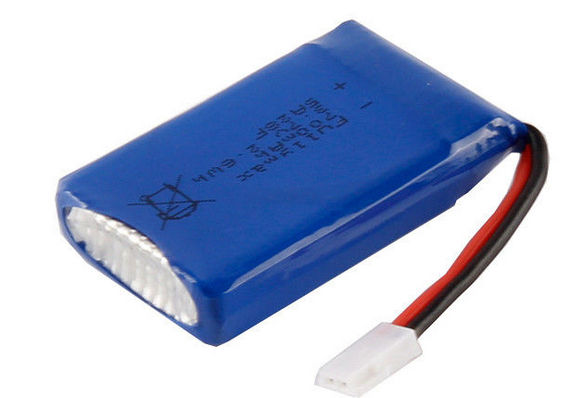

Customized 2S1P 25C 3.7 V 700mah Lipo Battery , Rc Helicopter Removable Battery
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:46:52
| Product Name: | Quadcopter Battery | Discharge C-rate: | 25C Continous 50C Peak |
|---|---|---|---|
| Platform: | Robust Burst Discharge | Cell Model: | 102440 3.7V 700mAh |
| Battery Model: | Can Be Customized As Your Requirement | Warranty: | 12 Months |
2S1P 25C RC Helicopter Battery 700mAh 3.7V Quadcopter Battery
Battery Spec:
| Product Name | 1S 25C Lipo battery pack 3.7V 700mAh | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 2.59Wh | |
| Accembly Composed Type | 1S / 1 cells | |
| Nominal Capacity | 700 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.02 V | |
| Cutoff Voltage for cell | 3.0 V | |
| Standard charge Current | 700 mA | @1C charge |
| Max. charge current | 2100 mA | @3C charge |
| Continous Discharge Current | 17500 mA | @25C discharge |
| Max. Discharge Current | 35000 mA | @50C discharge ≤ 1s |
| Resistance(pack) | 19 mΩ | 1kHz AC Method |
| Extra Run Time: | Over 500 times | |
| Weight (Approx.) | 18 g | |
| Dimensions(T.W.L.) | 10*24*42 (mm) | TxWxL |
| Charging Plug | JST-XH | selectable |
| Discharging Plug | Molex | selectable |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Warranty | 12 months | |
We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 22000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.
1, Shrink wrap with thin PVC.
2, 300 Long Cycle time, high discharge rate
3, With extremely low internal resistance, superior safety characteristics.
4, Light weight and higher energy density than any rechargeable battery.
5, Supply which requires compact size and lighter weight.
Package and Shipping policy:
We will use a high safe package to keep the batteries in a good condition during whole transportation.
The express (like UPS, DHL, EMS, TNT ect.)is our usually shipping way. But the air-express and sea shipping also will be arranged for bulk orders as customers' requirement.
-Long guarantee time: 12 months from shipping date
-Defective lipos caused by production, can be replacement, and the new one will be sent with second shipment.
