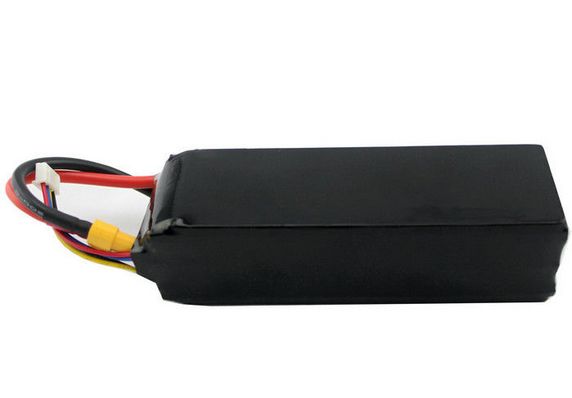

5600mAh 14.8V 10C Quadcopter Lithium Polymer Drone Battery pack

  • 类型Li-polymer Battery Pack
  • 时间2022/4/19 15:44:03

Detailed Product Description
Product Name: Rechargeable Battery Pack Discharge C-rate: 10C Continous, 20C Peak
Battery Configuration: 4S1P 14.8V Application: Quadcopter Drone And UAV
Battery Pack Weight: 410g Battery Pack Resistance: 20 MΩ



5600mAh 14.8V 10C Quadcopter Lithium Polymer Drone Battery pack

Battery pack Spec:



Product Name 4S Drone battery pack 14.8V 5600mAh 10C
Battery Type Lithium Polymer battery cell
Power Wh: 82.88Wh
Accembly Composed Type 4S/ 4 cells
Nominal Capacity 5600 mAh @0.2C discharge
Nominal Voltage 14.8 V
Charge Voltage 16.8±0.08 V
Cutoff Voltage for cell 3.0 V
Standard charge Current 2800 mA @0.5C charge
Max. charge current 5600 mA @1C charge
Continous Discharge Current 56000 mA @10C discharge
Max. Discharge Current 112000 mA @20C discharge ≤ 1s
Resistance(pack) 20 mΩ 1kHz AC Method
Extra Run Time: Over 300 times
Weight (Approx.) 410 g
Dimensions(T.W.L.) 30*45*145 (mm) TxWxL
Charging Plug JST-XH selectable
Discharging Plug XT60 selectable
Charge Temperature 0 ~ 45℃
Discharge Temperature -20 ~ 60℃
Storage Temperature -10~40℃ Less than one month
0~30℃ More than one month
Warranty 12 months


We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 50000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.



Characteristics:

1.compact and accurate battery size
2.Very light but highly energy density;
3.Endurable and Long service life;
4.High voltage and high discharging plaform;
5.Powerful and robust Burst and Flat high rate discharge performance;
6.Low self-discharge, Low inner resistance, highly safety and long lifetime;

Guarantee:

-Long guarantee time: 12 months from shipping date
-Defective lipos caused by production, can be replacement, and the new one will be sent with second shipment.

Why us?


1. More competitive price! As a manufacturer, we have our own factory, so the price will be much more competitive!

2. Great quality! All the cells we use are A grade cells, 100% quality check and full one year warranty!

4. Great shipping service! We have cooperated with DHL, UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!

5. Best sale-service! From the beginning to the end, any quality problem with our products, new free ones will be shipped!
