High Voltage 6S Lipo Drone Battery Pack 22.2V 10000mAh 20C High Power Battery Manufacturer
- 类型Li-polymer Battery Pack
- 时间2017/6/22 15:53:38
Detailed Product Description
| Product Name: | Quadcopter Battery Pack | Performance: | High Voltage And Highly Energy Density |
|---|---|---|---|
| Discharge Rate: | 20C Continous 40C Max | Cell Model: | 1159156 10000mAh 20C |
| Quality: | A+ Quality And Highly Safety | Connector: | XT Or Customized |

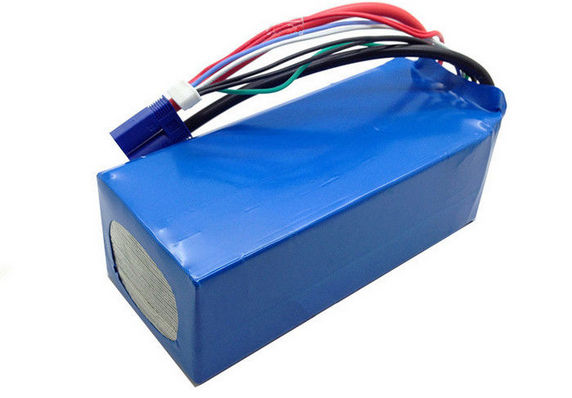

Large Capacity 6S 20C LiPo Drone Battery Pack 22.2V 10000mAh For Quadcopter
| Product Name | 10000mAh 20C 22.2V 6S battery pack for UAV/ FPV | |
| Battery Type | High Voltage Lithium Polymer battery | |
| Power Wh: | 222Wh | |
| Accembly Composed Type | 6S/ 6 cells | |
| Nominal Capacity | 10000 mAh | @0.2C discharge |
| Nominal Voltage | 22.2 V | |
| Charge Voltage | 25.2±0.12 V | |
| Cutoff Voltage for cell | 3.0 V | |
| Standard charge Current | 10000 mA | @1C charge |
| Max. charge current | 20000 mA | @2C charge |
| Continous Discharge Current | 200000 mA | @20C discharge |
| Max. Discharge Current | 400000 mA | @40C discharge ≤ 1s |
| Resistance(Pack) | 10 mΩ | 1kHz AC Method |
| Extra Run Time: | Over 300 times | |
| Weight (Approx.) | 1266 g | |
| Dimensions(T.W.L.) | 67*60*165 (mm) | TxWxL |
| Charging Plug | JST-XH/ selectable | |
| Discharging Plug | XT90/ selectable | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ |
More than one month |
|
Characteristics:
1.Endurable and Long service life;
2.compact and accurate battery size
3.Very light but highly energy density;
4.High voltage and high discharging plaform;
2.compact and accurate battery size
3.Very light but highly energy density;
4.High voltage and high discharging plaform;
5.Can be customized with different voltage and capacity;
6.Powerful and robust Burst and Flat high rate discharge performance;
7.Low self-discharge, Low inner resistance, highly safety and long lifetime;
8.Factory-based good prices with high quality and High-Efficient-Action service.
8.Factory-based good prices with high quality and High-Efficient-Action service.
Main application:
This Model high capacity high power Lithium Polymer battery(Lipo battery) is widely used for Drones, UAV, FPV, RC toys, RC helicopter, RC cars, RC boat, RC hobby, Airsoft gun, power tools, E-bike,
