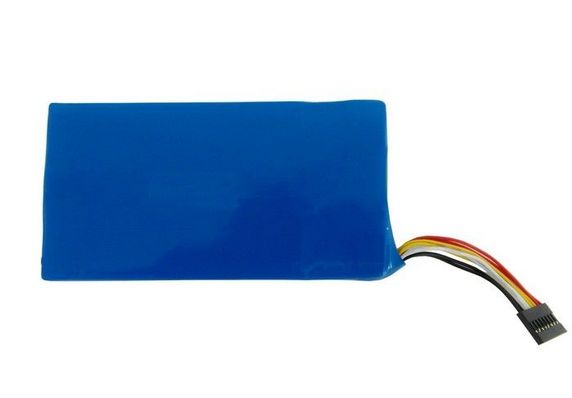

Low Self Discharge 14.8 V Lipo Battery 3000mAh , 44.4Wh Polymer Lithium Ion Battery
- 类型Li-polymer Battery Pack
- 时间2022/3/17 15:35:43
| Type: | Lithium Ion Polymer Battery Pack | Cell: | 6040115 3000mAh |
|---|---|---|---|
| PCM: | Seiko IC Is Available | NTC: | 10 KOhm Or 100 KOhm (available) |
| Configuration: | 4S1P Or Other Types | Weight: | 252g |
Rechareable 4S1P 14.8V lipo battery 3000mAh lithium polymer batteries
Specification:
| Battery Type | Lithium ion Polymer battery | |
| Product Name | 6040115 3000mAh 14.8V li-polymer pack | |
| Power Wh: | 44.4Wh | |
| Assembly Composed Type | 4S1P( 4 single cells) | |
| Nominal Capacity | 3000 mAh | @0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 12.0 V | |
| Standard discharge Current | 600 mA | @0.2C charge |
| Max. discharge current | 3000 mA | @1C charge |
| Standard Charge Current | 600 mA | @0.2C discharge |
| Max. Charge Current | 3000 mA | @1C discharge |
| Weight (Approx.) | 252 g | |
| Cycle Life: | 500 times | |
| Resistance | ＜50 mΩ | |
| Dimensions(T.W.L.) | 13.0*80*117 (mm) | battery pack size |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
Advantages:
1. Accept OEM/ODM.
2. High energy density.
3. Factory price& High quality.
4. 12 months warranty from ship date.
5. Free samples are available.
6. With short-circuit protection function, safe and reliable.
7. Good consistency, low self discharge.
8. Light weight, small and customized size.
9. Widely application for electronics and industry products.
Warning:
1.Forbid to hammer to trample the battery;
2.Forbid disassembling the battery in anyway.
3.Do not throw the battery into fire or heat the battery;
4.Do not throw battery into water or make it wet;
Main application:
Lithium polymer battery(Lipo battery) widely used for Medical devices battery, LED light, Massage Product, Miner lamp,blue tooth device, E-bike, E-scooter, EV, UPS, GPS, Portable DVD, PAD, notebook, Wireless transmitter, Wireless receiver, power driven tools & toy, camcorder, digital camera etc
