503040 Rechargeable Li Polymer Battery Cell 600mAh 3.7V LiPo Battery
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:58:25
| Type: | Li-polymer Battery | Qualtiy: | A Grade Good Quality |
|---|---|---|---|
| Application: | GPS, Bluetooth, Digital Devices | Stock: | Stock Available |
| Service: | OEM ODM Welcomed | Material: | Lithium Cobalt Oxides |

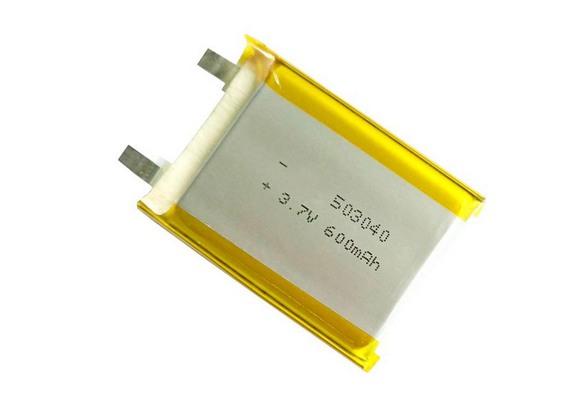

Rechargeable Lipo single Cell 503040 600mAh 3.7V Lithium Polymer Battery
Lipo battery Specification:
| Product Name | 503040 600mAh 3.7V lipo battery cell | |
| Battery Type | Rechargeable li-polymer battery | |
| Power Wh: | 3.7Wh | |
| Configuration | 1cell | |
| Standard Capacity | 600 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Discharge end Voltage | 3.0 V | |
| Standard charge Current | 300 mA | @0.5C charge |
| Max. charge current | 600 mA | @1C charge |
| Standard Discharge Current | 300 mA | @0.5C discharge |
| Max. Discharge Current | 600 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | 500 times deep cycle | |
| Weight (Approx.) | 12 g | |
| Dimensions(T.W.L.) | 5.0*30*40 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 10~30℃ | More than one month | |
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Advantages:
1) Low self-discharge
2) Low internal resistance
3) No memory effect
4) Long cycle life, chargeable up to 500 times
5) No fire, No explosion, No leakage
6) Very good and quick charge, capability can be charged to 90% within 10 min.
7) Thickness can be adjusted while width and height keep the same.
Main application:
Lithium polymer battery(Lipo battery) widely used for GPS, Portable DVD, PDA,earphone, blue tooth device,notebook,MP3 ,MP4 player, Medical devices battery, Wireless transmitter, Wireless receiver, power driven tools & toy, camcorder, digital camera, head set stereo, handy terminal, mini disc player etc.
Other Available Models:
|
NO |
Model |
Capacity(mAh) |
Length(mm) |
Width(mm) |
Thickness(mm) |
|
1 |
503035 |
500 |
35 |
30 |
5.0 |
|
2 |
503048 |
750 |
48 |
30 |
5.0 |
|
3 |
503040 |
600 |
40 |
30 |
5.0 |
|
4 |
503450 |
950 |
50 |
34 |
5.0 |
|
5 |
522030 |
280 |
30 |
20 |
5.2 |
|
6 |
552035 |
350 |
35 |
20 |
5.5 |
|
7 |
552535 |
450 |
35 |
25 |
5.5 |
|
8 |
582446 |
650 |
46 |
24 |
5.8 |
