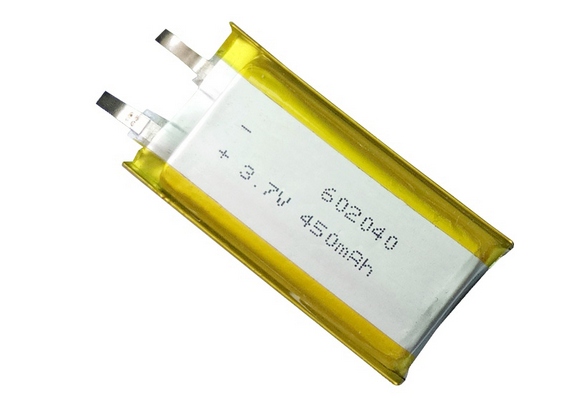

Single Cell Lipo Battery 3.7V 450mah 602040 Lithium ion Polymer Batteries
- 类型Li-polymer Battery Pack
- 时间2022/4/19 15:57:52
| Type: | Lipo Batteries | Battery Size: | 6.0*20*40mm Or Customized |
|---|---|---|---|
| Service: | OEM And ODM Accepted | MOQ: | Small Order Accepted |
| Warranty: | 12 Months From Shipment Date | Quality: | A Garde Quality Cells |
Single Cell Lipo Battery 3.7V 450mah 602040 Lithium ion Polymer Batteries
Lipo battery Specification:
| Product Name | 602040 450mAh 3.7V Li-polymer battery | |
| Battery Type | Rechargeable li-poly battery | |
| Power Wh: | 1.66Wh | |
| Accembly Composed Type | 1 single cell | |
| Nominal Capacity | 450 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 200mA | @0.5C charge |
| Max. charge current | 450 mA | @1C charge |
| Standard Discharge Current | 200 mA | @0.5C discharge |
| Max. Discharge Current | 450 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 8g | |
| Dimensions(T.W.L.) | 6.0*20*40 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Protection Function |
Over charge, Over discharge, Over load, Short Circuit protection |
|
| Warranty | 1 year | |
Advantages:
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance and Environmental friendly
8. Lighter weight smaller size
Applications of Lipo Battery
1. Digital Products : Bluetooth, MP3,MP4,P-DVD, Cellular Phone.
2. Portable Electronics: Notebook Computers, LCD light, Digital Camera, Emergency Lighting
3. Backup power supply, Medical Device,Electric nipper .
4. Medical instruments. Electric bicycles, HEV, EV.
5. solar storage power station, ups, backup emergency battery etc.
1. A professional sales team which provide consultant service and the most competitive battery solutions.
2. We also promise that our customers will enjoy high quality,high efficiency,personality,variety and internationality services.
3. We strive to provide you with the best quality products,the most reasonable price and the best services from China.
4. Quick response, every inquiry will be replied within 24 hours.
Other Similar Battery Model:
|
NO |
Model |
Capacity(mAh) |
Length(mm) |
Width(mm) |
Thickness(mm) |
|
1 |
602030 |
300 |
30 |
20 |
6.0 |
|
2 |
602035 |
400 |
35 |
20 |
6.0 |
|
3 |
602040 |
450 |
40 |
20 |
6.0 |
|
4 |
602248 |
600 |
48 |
22 |
6.0 |
|
5 |
602530 |
400 |
30 |
25 |
6.0 |
|
6 |
602535 |
500 |
35 |
25 |
6.0 |
|
7 |
603030 |
500 |
30 |
30 |
6.0 |
|
8 |
603035 |
600 |
35 |
30 |
6.0 |
