High Energy Density Custom Battery Pack 3 Cell Lipo Battery 11.1 V 800mAh
- ClassificationLi-polymer Battery Pack
| Type: | Custom Lipo Battery Pack | Warranty: | 1 Year |
|---|---|---|---|
| Cycle Life: | 500 Times Deep Cycle | Application: | All Electronic Products |
| Composed: | 3S1P 11.1V | Wire And Connector: | Customized |

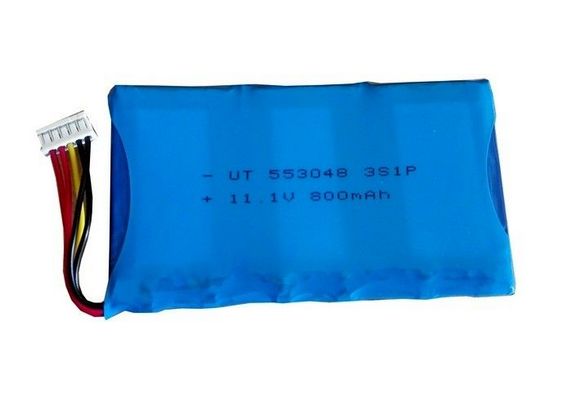

553048 800mAh Custom Battery Pack 3S 11.1V Rechargeable Batteries
Battery Specification:
| Product Name | 553048 800mAh 11.1V lipo battery pack | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 8.88Wh | |
| Accembly Composed Type | 3S/ 3 cells | |
| Nominal Capacity | 800 mAh | @0.2C discharge |
| Nominal Voltage | 11.1 V | |
| Charge Voltage | 12.6±0.12 V | |
| Cut-off Voltage | 9.0 V | |
| Standard charge Current | 400 mA | @0.5C charge |
| Max. charge current | 800 mA | @1C charge |
| Standard Discharge Current | 400 mA | @0.5C discharge |
| Max. Discharge Current | 800 mA | @1C discharge |
| Resistance | ＜120 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 50 g | |
| Dimensions(T.W.L.) | 6.0*48*92 (mm) | pack |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | 0~40℃ | Less than one month |
| 0~30℃ | More than one month | |
Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Certifications: CE,UN, RoHS, ISO9001
5. Long life cycle, No memory, environment friendly
Advantages:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size
Storage:
1.If the battery need to be stored for a long time, charge the battery for 40%-70% electric quantity.
2.Battery and the charger should be stored in clean, dry and ventilating place, and should not be together with corrosive material, keep the battery away from fire and heat source.
