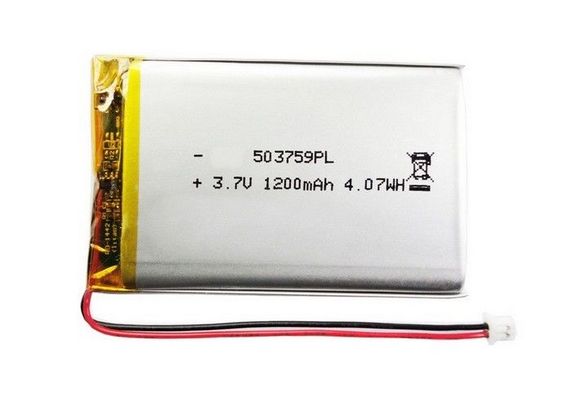

3.7V Custom Lithium Polymer Battery Pack 503759 1200mAh
- ClassificationLi-polymer Battery Pack
| Type: | Custom Li-polymer Battery | Composed Type: | 1S1P With PCB Protection |
|---|---|---|---|
| Application: | GPS, Portable DVD,Medical Devices | Stock: | Stock Available |
| Service: | OEM ODM Welcomed | Cycle Life: | 500 Times |
Custom Lithium Battery 503759 1200mAh 3.7V Lithium Polymer Battery Pack
Lipo battery Specification:
| Product Model | 503759 1200mAh 3.7V lipo battery pack | |
| Battery Type | Rechargeable lithium battery | |
| Power : | 4.44Wh | |
| Configuration | 1cell/ 1S1P | |
| Standard Capacity | 1200 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Discharge end Voltage | 3.0 V | |
| Standard charge Current | 600 mA | @0.5C charge |
| Max. charge current | 1200 mA | @1C charge |
| Standard Discharge Current | 600 mA | @0.5C discharge |
| Max. Discharge Current | 1200 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | 500 times deep cycle | |
| Weight (Approx.) | 22 g | |
| Dimensions(T.W.L.) | 5.0*37*59 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 10~30℃ | More than one month | |
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Advantages:
1. Capacity, resistance, voltage, platform time consistency is super good.
2. With short-circuit function, safe and reliable.
3. Factory price& High quality.
4. Good consistency, low self discharge.
5. Light weight, small and customized size.
6. Wide application for electronics and industry.
Main application:
Lithium polymer battery widely used for Wireless transmitter, Wireless receiver, power driven tools & toy, camcorder, digital camera, head set stereo,GPS, Portable DVD, PDA,earphone, blue tooth device,notebook,MP3 ,MP4 player, Medical devices battery,handy terminal, mini disc player etc.
