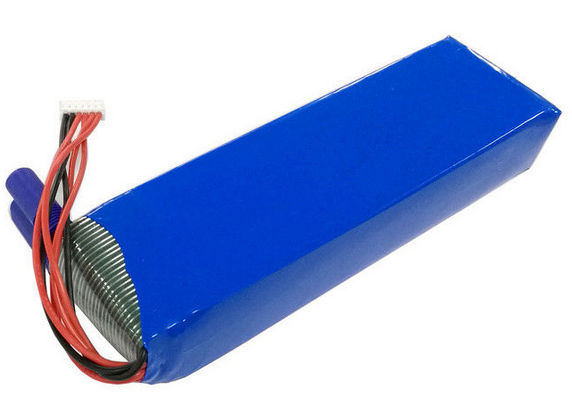

3S Lithium Polymer Battery Pack 11.1V 6000mAh High Energy Density Battery Manufacturer
- ClassificationLi-polymer Battery Pack
| Product Name: | Jump Starter Battery | Application: | Car Jump Starter RC Car Drone |
|---|---|---|---|
| Battery Model: | 1046148 3.7V 6000mAh 30C | Discharge C-rate: | 30C Continous 60C Peak |
| Battery Resistance: | 1.5mΩ For Each Cell | OEM: | Welcome OEM Order |
Auto Emergency Power Tool 6000mAh 11.1V 30C Car Jump Starter Battery Pack
Battery Pack Spec:
| Product Name | 6000mAh 11.1V 30C Car Jump Starter Battery Pack | |
| Battery Type | Rechargeable Lithium Ion Polymer battery | |
| Power Wh: | 66.6 Wh | |
| Accembly Composed Type | 3S/ 3 cells | |
| Nominal Capacity | 6000 mAh | @0.2C discharge |
| Nominal Voltage | 11.1 V | |
| Charge Voltage | 12.6±0.06 V | |
| Cutoff Voltage for cell | 3.0 V | |
| Standard charge Current | 6000 mA | @1C charge |
| Max. charge current | 18000 mA | @3C charge |
| Continous Discharge Current | 180000 mA | @30C discharge |
| Max. Discharge Current | 360000 mA | @60C discharge ≤ 1s |
| Resistance(pack) | 5 mΩ | 1kHz AC Method |
| Extra Run Time: | Over 300 times | |
| Weight (Approx.) | 450 g | |
| Dimensions(T.W.L.) | 30*46*158 (mm) | TxWxL |
| Charging Plug | JST-XH | selectable |
| Discharging Plug | JST | selectable |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Warranty | 12 months | |
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Key Features:
1) Stronger Endurance capability
2) High discharging platform
3) Low internal impedance
4) Long service lifespan
5) High temperature
Characteristics:
1.Voltage, capacity and IR fo each cell in one battery pack are strictly matched
2.Accurate voltage and small capacity difference among cells in one pack making better stability and consistency
3.Lower IR and lighter weight than others brands battery.
4.Longer flight time, real high discharge C-rate
5.High energy density and high capacity batteries are made for power multicopters
6.High compatibility with RC models on the market.
We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 22000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.
