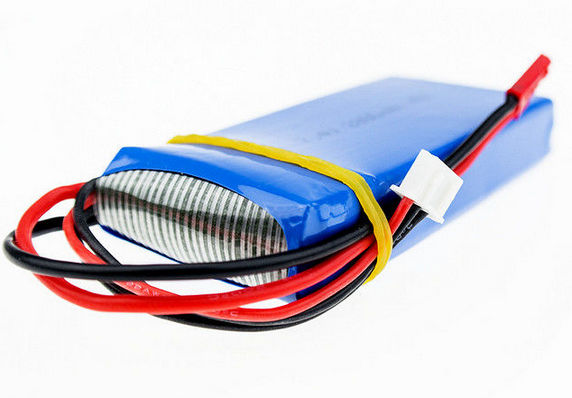

3 Cell Lithium Polymer Battery Pack , 11.1 V 4700mAh Replacement Batteries Supplier

  • ClassificationLi-polymer Battery Pack

Detailed Product Description
Product Name: Jump Starter Battery Pack Application: Car Jump Starter RC Car Drone FPV UAV Multicopter
Battery Watts: 52.17 Wh Discharge C-rate: 30C Continous, 60C Peak
Battery Size: 19 * 67* 145mm Configuration: 3S1P 11.1v

Rechargeable 30C 4700mAh 11.1V High Safety Car Jump Starter Battery Pack

Battery Pack Spec:

Product Name High Power Car Jump Starter Battery Pack
Battery Type Rechargeable Lithium Ion Polymer battery
Power Wh: 52.17 Wh
Accembly Composed Type 3S/ 3 cells
Nominal Capacity 4700 mAh @0.2C discharge
Nominal Voltage 11.1 V
Charge Voltage 12.6±0.06 V
Cutoff Voltage for cell 3.0 V
Standard charge Current 4700 mA @1C charge
Max. charge current 14100 mA @3C charge
Continous Discharge Current 141000 mA @30C discharge
Max. Discharge Current 282000 mA @60C discharge ≤ 1s
Resistance(pack) 5 mΩ 1kHz AC Method
Extra Run Time: Over 300 times
Weight (Approx.) 363 g
Dimensions(T.W.L.) 19*67*140 (mm) TxWxL
Charging Plug JST-XH selectable
Discharging Plug JST selectable
Charge Temperature 0 ~ 45℃
Discharge Temperature -10 ~ 60℃
Storage Temperature -10~40℃ Less than one month
0~30℃ More than one month
Warranty 12 months

Warranty:


The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.


OEM Service:


-Selected color of shrinkable tube.
-Selected Discharge plug and Balance connector
-High quality OEM label

Characteristics:

1. Voltage, capacity and IR fo each cell in one battery pack are strictly matched

2. Accurate voltage and small capacity difference among cells in one pack making better stability and consistency

3. Lower IR and lighter weight than others brands battery.

4. real high discharge C-rate and High energy density

We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 220000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.
