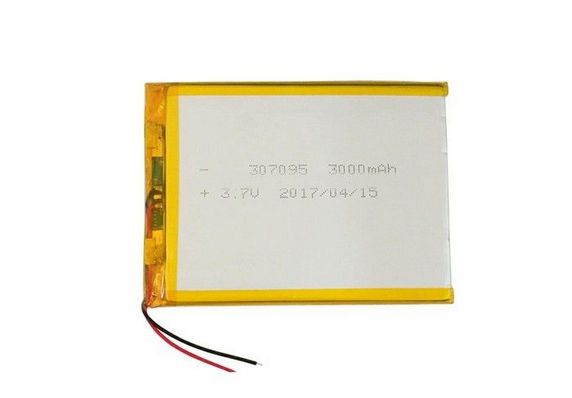

High Capacity 3.7 V Lipo Battery 3000mAh 307095 For Telecommunications
- ClassificationLi-polymer Battery Pack
| Type: | Lithium Polymer Battery Pack | Wattage: | 11.1Wh |
|---|---|---|---|
| Quality: | High Safe And Reliable | Cycle Life: | 500 Times |
| Protection: | Short Circuit/over Charge/discharge Protection | Application: | Telecommunications, Audio And Video Devices |
High Capacity 3000mAh 3.7V Lipo Battery 307095 Rechargeable Batteries
Lipo battery Specification:
| Product Name | 307095 3000mAh 3.7V rechargeable battery | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 11.1Wh | |
| Assembly Composed Type | 1S1P | |
| Nominal Capacity | 3500 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 600mA | @0.2C charge |
| Max. charge current | 3000 mA | @1C charge |
| Standard Discharge Current | 600 mA | @0.2C discharge |
| Max. Discharge Current | 3000 mA | @1C discharge |
| Resistance | ＜80 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 30 g | |
| Dimensions(T.W.L.) | 3.0*70*95 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |
Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Compose Type: Injection Technology to make battery more stable
3. Protection: Dual IC chips can anti-short circuit, anti-over charge, anti-over current, anti-overload
4. Long life cycle, No memory, environment friendly
Major application:
1)Video Devices:digital camera,portable DVD,portable television,electricity sound box,ect.
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
3).Portable Devices: PDA,E-book,PMP,PSP,laptop,walkie-talkies,portable medical device,etc
Storage:
1.If the battery need to be stored for a long time, charge the battery for 40%-70% electric quantity.
2.Battery and the charger should be stored in clean, dry and ventilating place, and should not be together with corrosive material, keep the battery away from fire and heat source.
Maintainance:
If the battery won’t be used for a long period, charge it every 3 months(each time 2~3h).
