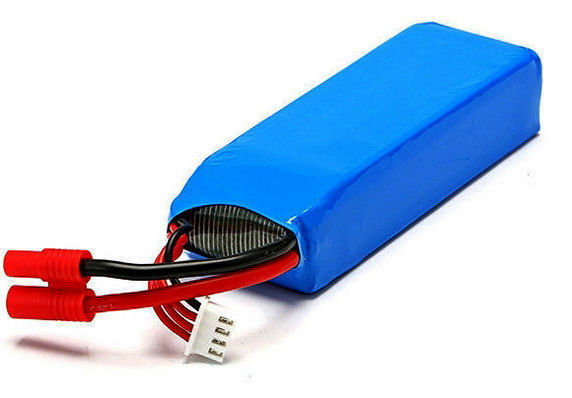

3S Rechargeable Lithium Polymer Battery Pack 11.1 V 5200mAh Custom Battery Pack Assembly

  • ClassificationLi-polymer Battery Pack

Detailed Product Description
Product Name: Car Jump Starter Battery Pack Battery Size: 30 * 45* 145mm
Application: Car Jump Starter Multicopter Drone And UAV Battery Warranty: 12 Months
Charge Rate: 1--3C Rate Discharge C-rate: 30C Continous 60C Peak

5200mAh 11.1V Deep Cycle Lipo Battery Car Jump Starter Battery Pack

Battery Pack Spec:

Product Name High Power Car Jump Starter Battery Pack
Battery Type Rechargeable Lithium Polymer battery
Power Wh: 57.72 Wh
Accembly Composed Type 3S/ 3 cells
Nominal Capacity 5200 mAh @0.2C discharge
Nominal Voltage 11.1 V
Charge Voltage 12.6±0.06 V
Cutoff Voltage for cell 3.0 V
Standard charge Current 5200 mA @1C charge
Max. charge current 15600 mA @3C charge
Continous Discharge Current 156000 mA @30C discharge
Max. Discharge Current 312000 mA @60C discharge ≤ 1s
Resistance(pack) 5 mΩ 1kHz AC Method
Extra Run Time: Over 300 times
Weight (Approx.) 384 g
Dimensions(T.W.L.) 30*45*145 (mm) TxWxL
Charging Plug JST-XH selectable
Discharging Plug EC-5 plug selectable
Discharge Temperature -20 ~ 60℃
Charge Temperature 0 ~ 45℃
Storage Temperature -10~40℃ Less than one month
0~30℃ More than one month
Warranty 12 months


We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 50000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.

Features:

1. High Capacity and Stable Discharge Voltage

2. Light weight, small size and high performance

3. Small internal resistance

4. Outstanding Discharge properties and Storage Capacity

5. Pollution free, long cycle life

6. No memory effect

Warranty:


The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.


OEM Service:
-Selected color of shrinkable tube.
-Selected Discharge plug and Balance connector
-High quality OEM label
