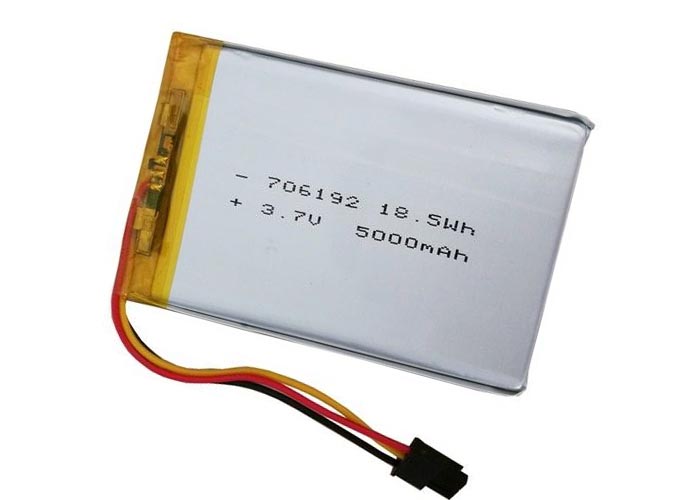

Hi Capacity Safe 3.7V Lipo Battery 706192 5000mAh OEM Battery Pack
- ClassificationLi-polymer Battery Pack
| Type: | Rechargeable Lithium Battery Pack | Size: | 7.0x61x92mm |
|---|---|---|---|
| Capacity: | 5000mAh | Connector: | Molex 43645-0300 |
| Protection: | With PCB And 10K NTC | Quality: | High Safe And Reliable |
Hi Capacity Safe 3.7V Lipo Battery 706192 5000mAh OEM Battery Pack
Lipo battery Specification:
| Product Name | 706192 5000mAh 3.7V OEM battery pack | |
| Battery Type | Lithium polymer battery | |
| Power Wh: | 18.5Wh | |
| Accembly Composed Type | 1S/ 1 cell | |
| Nominal Capacity | 5000 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 1000 mA | @0.2C charge |
| Max. charge current | 5000 mA | @1C charge |
| Standard Discharge Current | 1000 mA | @0.2C discharge |
| Max. Discharge Current | 5000 mA | @1C discharge |
| Resistance | ＜60 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 90g | |
| Dimensions(T.W.L.) | 7.0*61*92 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | 0~40℃ | Less than one month |
| 10~30℃ | More than one month | |
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Application:
1.Video Devices: MP3/MP4/MP5,digital camera,portable DVD,portable television,electronic cigarettes,electricity sound box,ect.
2.Portable Devices: GPS,PDA,E-book,PMP,PSP,laptop,walkie-talkies,portable medical device,etc.
3.Illuminate Devices: Miner lamp,search light,ect.
4.Others: Electric Toys,RC models,model aircraft,backup power,mobile power supply,hand electric drill,ect.
