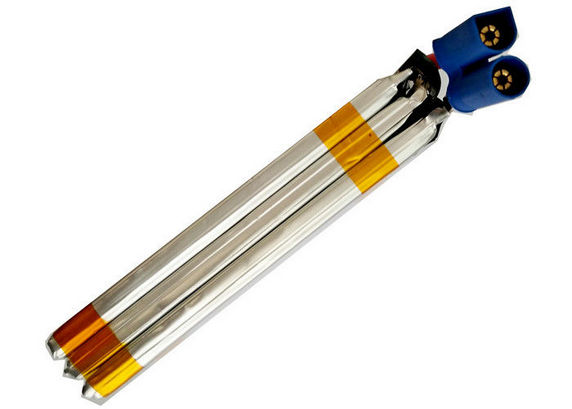

30C High Voltage 3S Polymer Lithium Battery Pack 11.1V 5200mAh Lower IR
- ClassificationLi-polymer Battery Pack
| Product Name: | LiPO Car Jump Starter Battery | Cell: | 9548135 5200mAh |
|---|---|---|---|
| Platform: | High Voltage,powerful And Robust Burst Discharge | Application: | Car Jump Starter Drone Multirotor Quadcopter |
| Configuration: | 3S1P 11.1V | Discharge Plug: | EC5 Or Customized |
Custom 5200mAh 11.1V 30C Car Jump Starter Lipo Battery Pack
Battery Spec:
| Product Name | Car Starter Jump Battery 11.1V 5200mAh | |
| Battery Type | Lithium Polymer battery cell | |
| Power Wh: | 57.72Wh | |
| Accembly Composed Type | 3S/ 3 cells | |
| Nominal Capacity | 5200 mAh | @0.2C discharge |
| Nominal Voltage | 11.1 V | |
| Charge Voltage | 12.6±0.06 V | |
| Cutoff Voltage for cell | 3.0 V | |
| Standard charge Current | 5200 mA | @1C charge |
| Max. charge current | 15600 mA | @3C charge |
| Continous Discharge Current | 156000 mA | @30C discharge |
| Max. Discharge Current | 312000 mA | @60C discharge ≤ 1s |
| Resistance(pack) | 5 mΩ | 1kHz AC Method |
| Extra Run Time: | Over 300 times | |
| Weight (Approx.) | 390 g | |
| Dimensions(T.W.L.) | 32*51*143 (mm) | TxWxL |
| Charging Plug | JST-XH | selectable |
| Discharging Plug | EC5 Plug | selectable |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | 0~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Warranty | 12 months | |
We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 50000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.
1. Voltage, capacity and IR fo each cell in one battery pack are strictly matched
2. Accurate voltage and small capacity difference among cells in one pack making better stability and consistency
3. Lower IR and lighter weight than others brands battery.
4. Longer flight time, real high discharge C-rate
5. High energy density and high capacity batteries
Operation Caution:
1) Use a specified charger .
2) Do not dissemble the battery.
3) Do not short circuit the battery terminals.
4) Do not throw the battery into fire or heat.
5) Keep the battery in a cool dry surrounding if it stands by.
Other models are available, Please feel free to contact us for more details.
We warmly welcome OEM orders according to your requirements.
We ensure prompt delivery, high quality and reasonable price.
