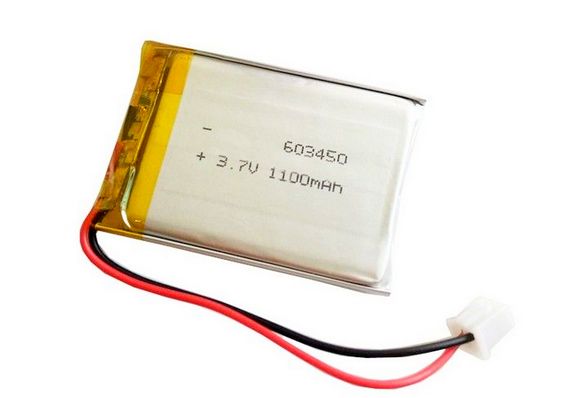

1S1P 3.7 V 1100mah Lipo Battery 603450 With PCB Rechargeable Battery



603450 3.7V Lipo Battery With PCB 1S1P 1100mAh Rechargeable Battery



Lipo battery Specification:



Product Name	603450 1100mAh 3.7V li polymer battery
Battery Type	Lithium Polymer battery
Power Wh:	4.07Wh
Accembly Composed Type	1S/ 1 cell
Nominal Capacity	1100 mAh	@0.2C discharge
Nominal Voltage	3.7 V
Charge Voltage	4.2±0.12 V
Cut-off Voltage	3.0 V
Standard charge Current	220 mA	@0.2C charge
Max. charge current	1100 mA	@1C charge
Standard Discharge Current	220 mA	@0.2C discharge
Max. Discharge Current	1100 mA	@1C discharge
Resistance	＜100 mΩ
Cycle Life:	Over 500 times
Weight (Approx.)	20 g
Dimensions(T.W.L.)	6.0*34*50 (mm)
Charge Temperature	0 ~ 45℃
Discharge Temperature	-10 ~ 60℃
Storage Temperature	0~35℃	Less than one month
	0~25℃	More than one month



Battery Quality:

1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Certifications: CE, UN38.3, RoHS, MSDS

Advantages:



1. High working voltage (3.7V);

2. High energy density;

3. Long cycle life (more than 500 cycles);

4. High safety;

5. Agile shape & dimension;

6. No memory effect;

7. Low self discharge;

8. Environmental friendly;

Main application:

Lithium polymer battery(Lipo battery) widely used for

1) Portable electronic devices, Bluetooth headset
2) Digital camera, Digital camcorder, MP3 player, MP4 player
3) Cellular phone, Digital phone, mobile phone
4) PDA, DMB,DVD, Portable DVD, MID, Mining lamp, Flashlight, GPS
5) Notebook computer, Portable computer, Lap-top computer, FRS, E-book
