10C 4S LiPO Drone Smart Battery Pack 14.8V 5600mAh Li Polymer Battery Manufacturer

  • ClassificationLi-polymer Battery Pack

Detailed Product Description
Product Name: Drone Smart Battery Pack Discharge C-rate: 10C Continous 20C Peak
PCM/ BMS: Over Discharge, Over Charge Protection Application: Airplane,multicopter,drone And UAV
Configuration: 4S1P 14.8V Battery Cycle Life: 300 Times

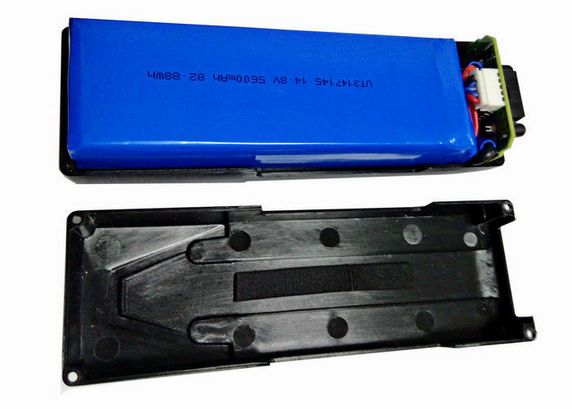

Drone 14.8V 5600mAh 10C High Rate Lithium Polymer Smart Battery Pack

Battery Spec:

Product Name 4S Drone battery pack 14.8V 5600mAh 10C
Battery Type Lithium Polymer battery cell
Power Wh: 82.88Wh
Accembly Composed Type 4S/ 4 cells
Nominal Capacity 5600 mAh @0.2C discharge
Nominal Voltage 14.8 V
Charge Voltage 16.8±0.08 V
Cutoff Voltage for cell 3.0 V
Standard charge Current 5600 mA @1C charge
Max. charge current 16800 mA @3C charge
Continous Discharge Current 56000 mA @10C discharge
Max. Discharge Current 112000 mA @20C discharge ≤ 1s
Resistance(pack) 20 mΩ 1kHz AC Method
Extra Run Time: Over 300 times
Weight (Approx.) 410 g
Dimensions(T.W.L.) 30*45*145 (mm) TxWxL
Charging Plug JST-XH selectable
Discharging Plug XT60 selectable
Discharge Temperature -20 ~ 60℃
Charge Temperature 0 ~ 45℃
Storage Temperature -10~45℃ Less than one month
0~30℃ More than one month
Warranty 12 months


We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 50000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.

Warranty:


The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

Features:

1. High Capacity and Stable Discharge Voltage

2. Light weight, small size and high performance

3. Small internal resistance

4. Outstanding Discharge properties and Storage Capacity

5. Pollution free, long cycle life

6. No memory effect

Main application:
This Model high capacity high power Lithium Polymer battery(Lipo battery) is widely used for Drones, UAV, FPV, RC toys, RC helicopter, RC cars, RC boat, RC hobby, Airsoft gun, power tools, E-bike
