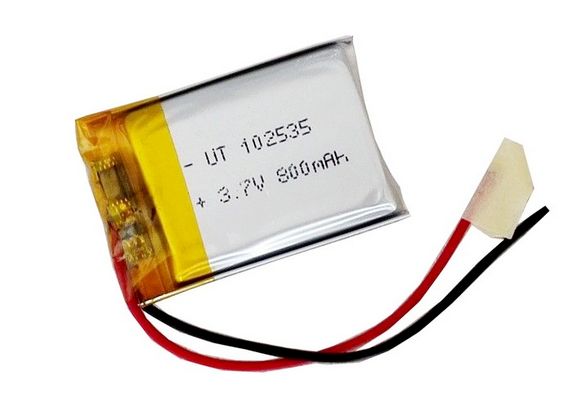

High Quality 102535 3.7V Lipo Battery Pack 800mAh For GPS Application
- ClassificationLi-polymer Battery Pack
| Type: | Li-polymer Battery | Capacity: | 800mAh |
|---|---|---|---|
| Watts: | 2.96Wh | Cycle Life: | 500 Times |
| Condition: | 100% New A Quality | Protection: | Short Circuit/over Charge/over Discharge Protection |
High Quality 102535 3.7V Lipo Battery Pack 800mAh For GPS Application
Lipo battery Specification:
| Product Name | 102535 800mAh 3.7V li polymer battery | |
| Battery Type | lithium ion polymer battery | |
| Power Wh: | 2.96Wh | |
| Accembly Composed Type | 1S/ 1 cell | |
| Nominal Capacity | 800 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 160 mA | @0.2C charge |
| Max. charge current | 800 mA | @1C charge |
| Standard Discharge Current | 160 mA | @0.2C discharge |
| Max. Discharge Current | 800 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 16 g | |
| Dimensions(T.W.L.) | 10.0*25*35 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | 0~40℃ | Less than one month |
| 0~30℃ | More than one month | |
Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Long life cycle, No memory, environment friendly
Advantages:
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance.
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
9. Lighter weight smaller size.Most safe no explosion no fire
Applications:
1.Telephone switchboard, electric equipments,medical-equipments,power instruments and meters
2.Computer, uninterrupted power source (UPS)
3.Power transmission and transformer station, switch-control, and accident lighting
4.Fire fighting, safety device, and alarm monitoring
5.Automatic office system
6.Radio communication system
7.Emergency lighting and car/ship starting system
8.Portable electric appliances and mining system
9.Traffic and navigation signal lamp
