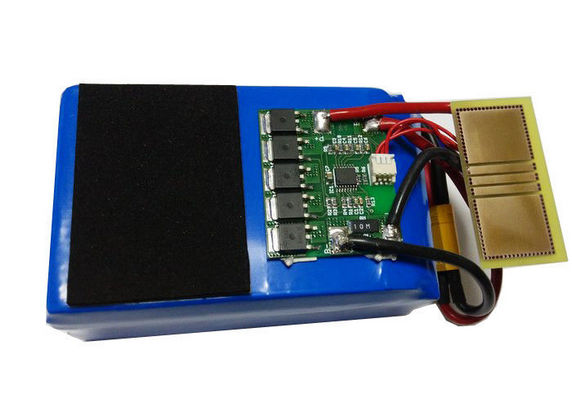

4S LiPO Battery Pack Low Internal Impedance 14.8 V 5000mAh Lithium Rechargeable Battery Pack Design
- ClassificationLi-polymer Battery Pack
| Product Name: | High Safety Smart Battery Pack | Discharge C-rate: | 10C Continous, 20C Peak |
|---|---|---|---|
| PCM/ BMS: | Overdischarge, Over Charge Protection, WidGT | Application: | Drone, Airplane,multicopter, Quadcopter, Multirotor |
| Configuration: | 4S1P 14.8V | Battery Cycle Life: | 500 Times |
14.8V 5000mAh 10C Discharge Rate OEM Lipo Smart Battery Pack
Battery Spec:
| Product Name | 4S smart battery pack 14.8V 5000mAh 10C | |
| Battery Type | Lithium Polymer battery cell | |
| Power Wh: | 74Wh | |
| Accembly Composed Type | 4S/ 4 cells | |
| Nominal Capacity | 5000 mAh | @0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.08 V | |
| Cutoff Voltage for cell | 3.0 V | |
| Standard charge Current | 2500 mA | @0.5C charge |
| Max. charge current | 5000 mA | @1C charge |
| Continous Discharge Current | 50000 mA | @10C discharge |
| Max. Discharge Current | 100000 mA | @20C discharge ≤ 1s |
| Resistance(pack) | 20 mΩ | 1kHz AC Method |
| Extra Run Time: | Over 300 times | |
| Weight (Approx.) | 385 g | |
| Dimensions(T.W.L.) | 38*56*95 (mm) | TxWxL |
| Charging Plug | JST-XH | selectable |
| Discharging Plug | XT60 | selectable |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Warranty | 12 months | |
1.) Excellent high discharge rate;
2.) Extra-low internal impedance;
3.) Discharge in high-temperature;
4.) Long cycle life and high quality;
5.) Easy customized, energy density;
6.) Low self-discharge etc.
Primary Competitive Advantages:
*Experienced Staff *Green Product
*Reasonable Price *Reputation
*Product Features *Product Performance
*Prompt Delivery *Quality Approvals
*Good After-sales Service
We provide different models of lipo battery pack for Remote Control devices, with high discharge C-rate from 5C to 50C with capacity up to 22000mAh. Tell us the max space size available on your device and working data, we will provide you the best solution.
