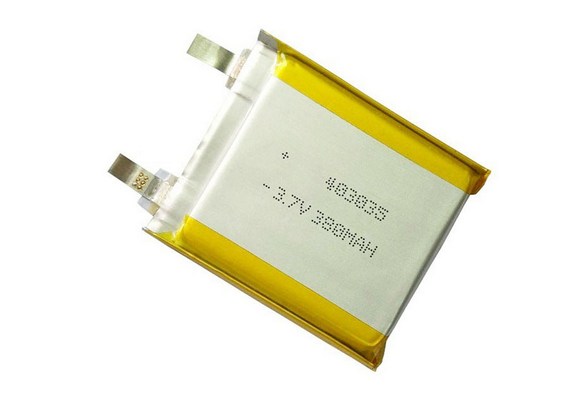

Lithium polymer Akku Cell 403035 3.7V 380mAh Rechargeable lipo batteries
- ClassificationLi-polymer Battery Pack
| Type: | Lipo Power Battery | Size: | Can Be Customized |
|---|---|---|---|
| Capacity: | 380mAh | Material: | Lithium Cobalt Oxides |
| Application: | GPS, Bluetooth, Digital Devices | Composed Type: | Lipo Battery Cell |
Rechargeable Batteries 3.7V 403030 300mAh Lithium Polymer Battery Cell
Lipo battery Specification:
| Product Name | 403035 380mAh 3.7V li-polymer battery | |
| Battery Type | Lithium Polymer battery | |
| Power Wh: | 1.4Wh | |
| Accembly Composed Type | 1 cell | |
| Nominal Capacity | 380 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 190 mA | @0.5C charge |
| Max. charge current | 380 mA | @1C charge |
| Standard Discharge Current | 190 mA | @0.5C discharge |
| Max. Discharge Current | 380 mA | @1C discharge |
| Resistance | ＜180 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 6 g | |
| Dimensions(T.W.L.) | 4.0*30*35 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month | |
| Protection Function |
Over charge, Over discharge, Over load, Short Circuit |
|
| Warranty | 12 Months | |
Features:
1. High energy density.
2. High working voltage for single battery cells.
3. Pollution-free. Long cycle life. No memory effect.
4. Capacity, resistance, voltage, platform time consistency is good.
5. With short-circuit production function, safe and reliable.
6. Good consistency, low self discharge.
7. Light weight, small and customized size.
8. Wide application for electronics and industry.
Warning:
1.Do not throw battery into water or make it wet;
2.Keep the battery away from heat source(like fire or heater);
3.Do not throw the battery into fire or heat the battery;
4.Forbid to hammer to trample the battery;
5.Forbid disassembling the battery in anyway.
Main application:
Lithium polymer battery widely used for GPS, Portable DVD, PAD, Cellular phone , mobile phone, notebook, earphone, blue tooth device,Medical devices, MP3 ,MP4 player, Wireless transmitter, Wireless receiver, power driven tools & toy, camcorder, digital camera and so on.
|
NO |
Model |
Capacity(mAh) |
Length(mm) |
Width(mm) |
Thickness(mm) |
|
1 |
402030 |
200 |
30 |
20 |
4.0 |
|
2 |
402035 |
250 |
35 |
20 |
4.0 |
|
3 |
402535 |
320 |
35 |
25 |
4.0 |
|
4 |
402540 |
350 |
40 |
25 |
4.0 |
|
5 |
403030 |
300 |
30 |
30 |
4.0 |
|
6 |
403035 |
380 |
35 |
30 |
4.0 |
|
7 |
403048 |
600 |
48 |
30 |
4.0 |
